So, I finally got around to making a portfolio site for the Tinkering Kiwi project. You’re looking at it, baby! For this, I went with the Hugo static site generator and the Blowfish theme. I’ve always liked the simplicity of just building a static site that you can deploy anywhere. So of course, I had to make it more complicated by adding Kubernetes and automatic continuous deployment.
If you’re new to Kubernetes, check out my post Kubernetes Demystified to learn some of the concepts this post will cover.
Why Kubernetes?#
Kubernetes is just how my brain works. I think once you learn Kubernetes, you love the way it makes you do things right first time, and all the built in magic like DNS, healthchecks and automatic recovery from most issues. You can also get a really cheap cluster from Rackspace Spot. I tend to deploy most apps I build to my Spot cluster, using a setup similar to what I’m describing here. By adding continuous deployment to my simple static website, I’ll be able to reuse it for other projects.
Building the Site#
To deploy the site, I’m first going to have to build it into a Docker image. If you’re following this as a tutorial, you could just ask your favourite LLM to build a simple echo server in your language of choice. I just asked Copilot to write a Dockerfile that builds my static site and this is what I got:
FROM ghcr.io/hugomods/hugo:debian-nightly AS builder
WORKDIR /src
COPY . /src
# Build the site (and minify)
RUN hugo --minify
# Find all text files and create a compressed version
RUN find public -type f \
\( -iname "*.html" -o -iname "*.css" -o -iname "*.js" -o -iname "*.xml" -o -iname "*.json" -o -iname "*.svg" -o -iname "*.txt" \) \
-print0 | xargs -0 -n1 sh -c 'gzip -9 -n -c "$0" > "${0}.gz"'
# Stage 2: nginx to serve the generated site
FROM nginx:stable-alpine AS final
RUN rm -rf /usr/share/nginx/html/*
# Copy files into Nginx
COPY docker/nginx.conf /etc/nginx/conf.d/default.conf
COPY --from=builder /src/public /usr/share/nginx/html
# Update permissions
RUN chown -R nginx:nginx /usr/share/nginx/html || true
EXPOSE 80
# Run nginx in the foreground
CMD ["nginx", "-g", "daemon off;"]
The site builds and runs very quickly, hugo generates pages super fast and the gzip compression of a handful of files takes less than a second.
Build and test the Docker container locally by running the following commands:
docker build -t home-page:latest .
docker run --rm -p 8080:80 home-page:latest
Open localhost:8080 in your browser and check the site loads and works as expected.
Building with Github#
Now it’s time to automate building the site with Github Actions. I build the Docker image and push it into the Github Container Registry, which is free for all public repos. I don’t mind storing the site like this, since it’s public static HTML anyway.
name: Build & Publish Docker image
on:
push:
branches: [ main ]
workflow_dispatch:
permissions:
contents: read
packages: write
jobs:
build-and-push:
name: Build and push to GHCR
runs-on: ubuntu-latest
steps:
- name: Checkout repository (including submodules)
uses: actions/checkout@v4
with:
submodules: 'recursive'
fetch-depth: 0
- name: Log in to GitHub Container Registry
uses: docker/login-action@v2
with:
registry: ghcr.io
username: ${{ github.actor }}
password: ${{ secrets.GITHUB_TOKEN }}
- name: Build and push image
uses: docker/build-push-action@v4
with:
context: .
file: Dockerfile
push: true
tags: |
ghcr.io/tinkeringkiwi/home-page:latest
ghcr.io/tinkeringkiwi/home-page:${{ github.sha }}
This Workflow will pull your code, log in to the container registry, then build and push the image. I had an issue early on where the site wasn’t building HTML output properly, this was due to the theme being a Git submodule, and the fix was adding submodules = 'recursive' to the checkout step.
Enter Kubernetes#
Once the site is built and pushed to Github Container Registry, it’s pretty easy to deploy to Kubernetes. Once again I asked Copilot to write a Kubernetes manifest to deploy the image that had been built, here is an overview, see the full version here
apiVersion: v1
kind: Namespace
metadata:
name: portfolio
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: home-page
namespace: portfolio
spec:
replicas: 2
template:
spec:
automountServiceAccountToken: false
containers:
- name: web
image: ghcr.io/tinkeringkiwi/home-page:latest
imagePullPolicy: Always # Important later
ports:
- containerPort: 80
name: http
---
apiVersion: v1
kind: Service
metadata:
name: home-page
namespace: portfolio
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: home-page-ingress
namespace: portfolio
spec:
ingressClassName: nginx
rules:
- host: tinkering.kiwi
This creates a namespace to hold all the resources for the site, a deployment of the container image, a service for the site, and an ingress using Nginx to allow outside access.
Applying the manifest will deploy the site to the Kubernetes cluster:
kubectl apply -f deployment.yaml
kubectl -n portfolio get pods -w # Watch the pods come up
# Debugging commands if needed :)
kubectl -n portfolio describe pod home-page-foo
kubectl -n portfolio logs home-page-foo
Congrats, the site is now live on your Kubernetes cluster!
Redeploying the Site#
Since I’ve set imagePullPolicy: Always, when I make changes to the site I can deploy the new image Github Actions has built just by running
kubectl -n portfolio rollout restart deployment/home-page
When you do this, you get all the Kubernetes magic. For example, if the new image is broken and fails health checks, or Nginx fails to start due to a bad config, the old version of the deployment will be kept, and only the new deployment will fail. If the new deployment is successful, traffic will be switched over to the new version, and the old version gracefully retired. Not really necessary for a personal blog, but very neat!
Adding Automated Deployment#
Wouldn’t it be swell if I could just push changes to my site to Github, and they be automatically deployed to the Kubernetes cluster? I’d probably be 100% more likely to update it!
Create a Service Account#
To give Github minimal permissions to automate this re-deployment of our image, we need to create another few things in Kubernetes
apiVersion: v1
kind: ServiceAccount
metadata:
name: github-actions
namespace: portfolio # Ensure this matches your target namespace
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
name: deployment-restarter
namespace: portfolio # or your target namespace
rules:
- apiGroups: ["apps"]
resources: ["deployments"]
verbs: ["patch", "get"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
name: deployment-restarter-binding
namespace: portfolio # or your target namespace
subjects:
- kind: ServiceAccount
name: github-actions # The Service Account associated with the token
namespace: portfolio # or your target namespace
roleRef:
kind: Role
name: deployment-restarter
apiGroup: rbac.authorization.k8s.io
This creates a Service Account called github-actions, a Role which only has permissions to perform patch and get on Deployments in the portfolio namespace, and a RoleBinding which binds the two together.
Create a Token for the Service Account#
kubectl -n portfolio create token github-actions --duration=8760h
This creates a token for the github-actions Kubernetes Service Account that expires in one year, which we can use in the next step to assemble a Kubeconfig file for Github Actions.
Create a Kubeconfig File#
I created a complete Kubeconfig file based on my existing administrator config.
apiVersion: v1
kind: Config
clusters:
- name: gh-actions-cluster
cluster:
server: <insert here>
insecure-skip-tls-verify: false
certificate-authority-data: <insert here>
users:
- name: github-actions
user:
token: <insert here>
contexts:
- name: gh-actions-context
context:
cluster: gh-actions-cluster
user: github-actions
current-context: gh-actions-context
Look at your own kubeconfig file to see what values are needed for cluster.server and cluster.certificate-authority-data, then add the token under the user.
cat ~/.kube/config # Refer to your config
Test the New Kubeconfig#
You can test the Kubeconfig file you’ve created by specifying it to kubectl, this will make sure it works before you try debugging Github Actions.
kubectl --kubeconfig=file.yaml -n portfolio rollout restart deployment/home-page
If all goes well, you should see deployment.apps/home-page restarted
Add the Kubeconfig to Github Actions Secrets#

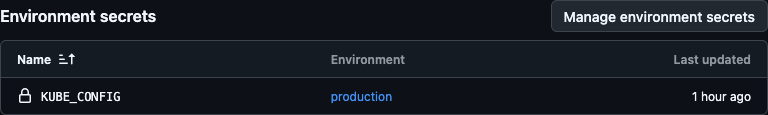

Add the entire contents of the Kubeconfig file you’ve just crafted to a secret in Github Actions, or an Environment Secret as I’ve done.
Add Restart Job to Github Actions#
Now we can finally get the continuous deployment running. Add a second Job to the Github Actions workflow we created earlier:
deploy:
name: Deploy (kubectl restart)
needs: build-and-push
runs-on: ubuntu-latest
environment: production # If you used Environment Secrets
steps:
- name: Install kubectl
uses: azure/setup-kubectl@v3
with:
version: 'v1.32.7'
- name: Log in to Kubernetes
uses: azure/k8s-set-context@v3
with:
kubeconfig: ${{ secrets.KUBE_CONFIG }}
- name: Restart deployment
run: |
kubectl rollout restart deployment/home-page -n portfolio
Instant Deployment#

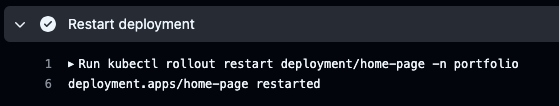

If all goes well, you should see the deployment.apps/home-page restarted message that your continuous deployment was successful in the Github Actions run.
Going Further#
Now that Github Actions can interact with your Kubernetes cluster directly, there’s all sorts of ways to get creative with this. You could give the github-actions Service Account more permissions, and let it run kubectl apply for you. You could have a staging deployment to a different namespace or cluster. Personally, I find most updates I want to do are to the application code itself, so I’m happy to apply tweaks to the deployment configuration manually, then let Github simply refresh to the new update.
Conclusion#
Of course this is entirely unnecessary for a simple static website such as this personal blog, but it’s super cool to be able to publish content instantly by just committing it to Github. Unnecessary projects like this are exactly what being a Tinkering Kiwi is all about.
Further Reading#
I created a post Kubernetes Demystified to go over the basics of Kubernetes, if you’re new or want a refresher on the concepts used in this article.
